Aerial Access Solutions
Truck-mounted aerial platforms, 10 m to 46 m
HYE Boom Lift Truck-Mounted Aerial Platforms are designed for maximum reach, stability and efficiency, making them the ideal choice for industries that require safe and reliable aerial access.
Whether for infrastructure maintenance, utility work or emergency services, HYE Boom Lifts deliver superior performance across diverse job sites.
Key Features
- Enhanced mobility
- High reach & stability
- Durable & weather-resistant
- Customisation options
- Advanced hydraulic control
Models & Specifications
Choose the working height and reach that suit your job. Every model can be supplied with optional extras on request.
10 mWorking height
200 kgCapacity

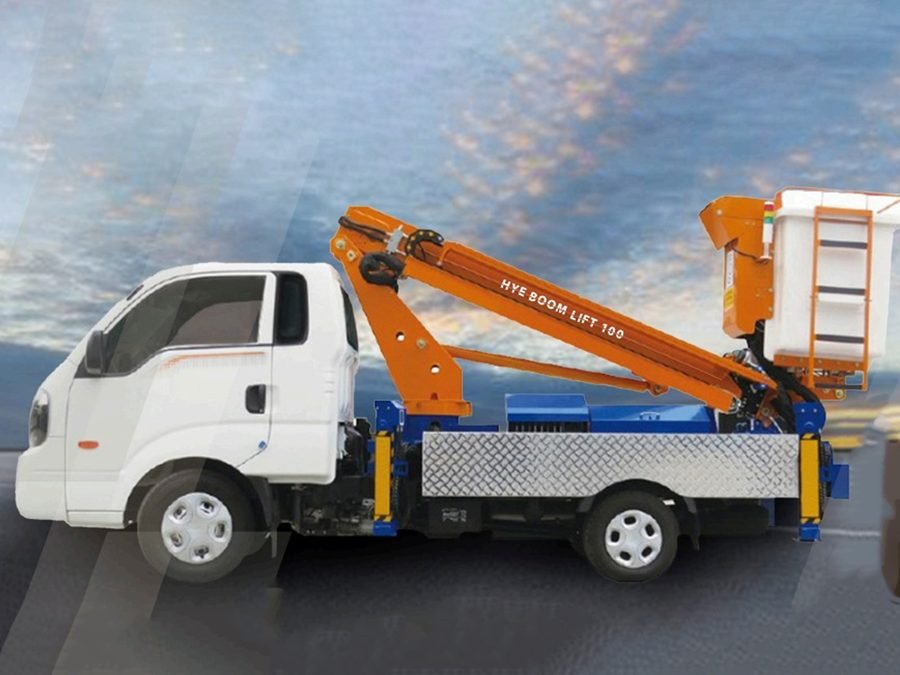

HYE Boom Lift 100
| Working height | 10 m |
|---|---|
| Platform height | 8 m |
| Basket dimension | 1200 × 700 × 1100 mm |
| Basket capacity | 200 kg |
- Telescopic boom (2 elements: main boom + one telescopic extension)
- 360° turret rotation on bearing turntable (non-continuous)
- Fully hydraulic controls in the basket
- Hydraulic controls installed on the turntable
- Outreach controlled by limiter
- Engine start/stop control from the basket
- Available with steel basket / FRP
- 45° right + 45° left hydraulic rotating basket
- Basket levelling by hydraulic circuit
- Emergency manual pump
- 4 nos. hydraulic outriggers (heavy duty)
- Externally installed electrical and hydraulic hoses
- 12V or 24V electric system
- Working light in the basket
- 230V AC electric socket in the basket
13 mWorking height
5.5 mOutreach
200 kgCapacity

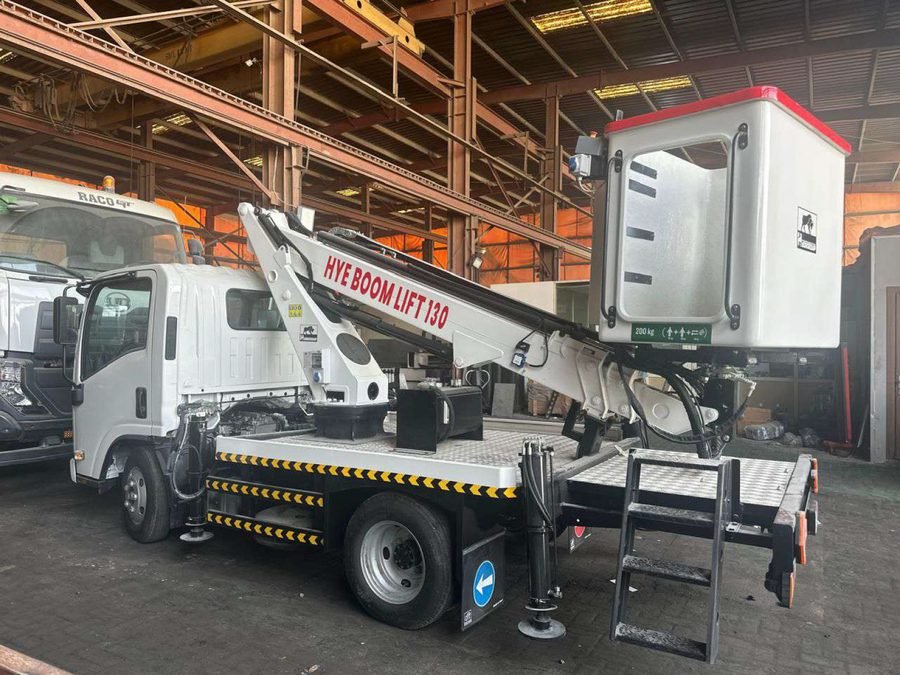

HYE Boom Lift 130
| Working height | 13 m |
|---|---|
| Platform height | 11 m |
| Lateral reach | 5.5 m |
| Basket dimension | 1200 × 700 × 1100 mm |
| Basket capacity | 200 kg |
- Telescopic boom (3 elements: main boom + two telescopic extensions)
- 360° turret rotation on bearing turntable (non-continuous)
- Fully hydraulic controls in the basket
- Hydraulic controls installed on the turntable
- Outreach controlled by limiter
- Engine start/stop control from the basket
- Available with steel basket / FRP
- 45° right + 45° left hydraulic rotating basket
- Basket levelling by hydraulic circuit
- Emergency manual pump
- 4 nos. hydraulic outriggers (heavy duty)
- Externally installed electrical and hydraulic hoses
- 12V or 24V electric system
- Working light in the basket
- 230V AC electric socket in the basket
13 mWorking height
5 mOutreach
200 kgCapacity

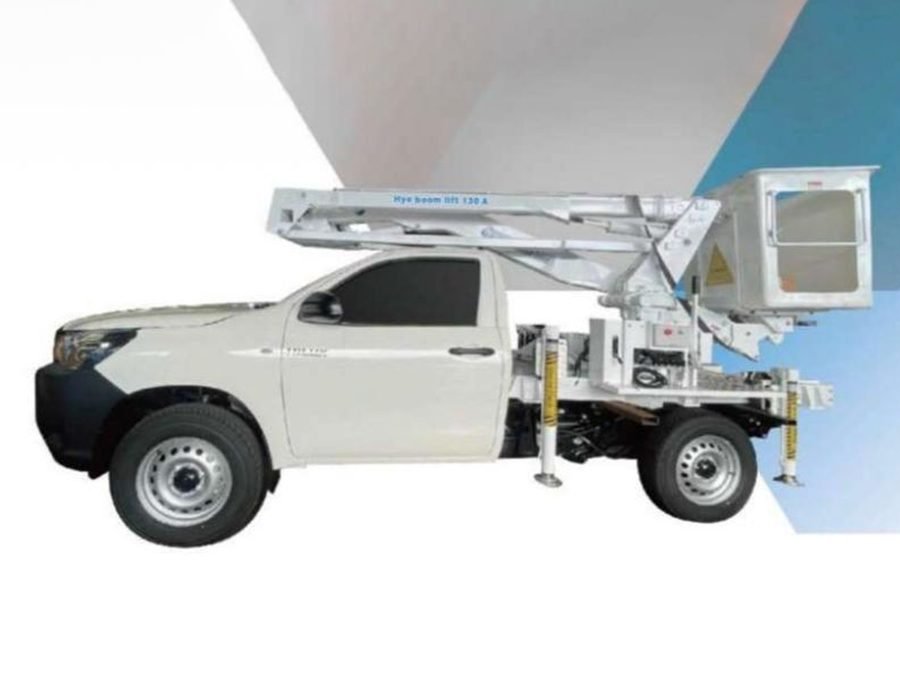

HYE Boom Lift 130 A
| Working height | 13 m |
|---|---|
| Platform height | 11 m |
| Lateral reach | 5 m |
| Basket dimensions | 1400 × 700 × 1100 mm (steel / FRP) |
| Basket capacity | 200 kg |
- Articulated boom (two elements) + telescopic boom (main boom + two extensions)
- 360° turret rotation on bearing turntable (non-continuous)
- Electro-hydraulic controls in the basket
- Electro-hydraulic controls from the ground
- Engine start/stop control from the basket and from the ground
- 60° right + 60° left hydraulic rotating basket
- Basket levelling by hydraulic parallelogram
- Emergency manual pump (electric/manual)
- 12V or 24V electric system available
- 4 nos. hydraulic outriggers (heavy duty)
- Outrigger interlock
16 mWorking height
6.5 mOutreach
200 kgCapacity

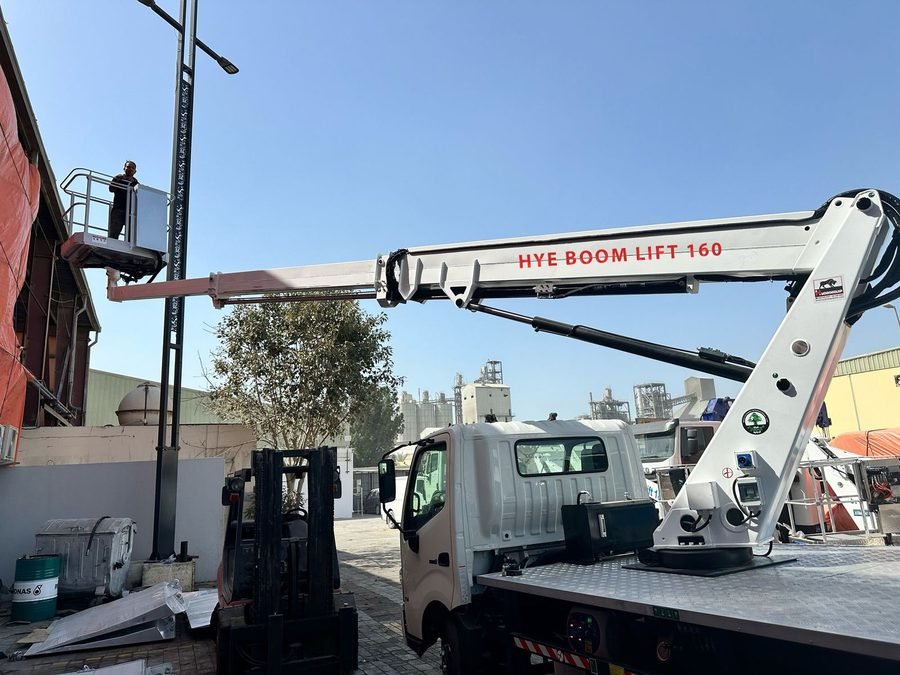

HYE Boom Lift 160
| Working height | 16 m |
|---|---|
| Platform height | 14 m |
| Lateral reach | 6.5 m |
| Basket dimension | 1200 × 700 × 1100 mm |
| Basket capacity | 200 kg |
- Telescopic boom (3 elements: main boom + two telescopic extensions)
- 360° turret rotation on bearing turntable (non-continuous)
- Fully hydraulic controls in the basket
- Hydraulic controls installed on the turntable
- Outreach controlled by limiter
- Engine start/stop control from the basket
- Available with steel basket / FRP
- 45° right + 45° left hydraulic rotating basket
- Basket levelling by hydraulic circuit
- Emergency manual pump
- 4 nos. hydraulic outriggers (heavy duty)
- Externally installed electrical and hydraulic hoses
- 12V or 24V electric system
- Working light in the basket
- 230V AC electric socket in the basket
18 mWorking height
7 mOutreach
200 kgCapacity

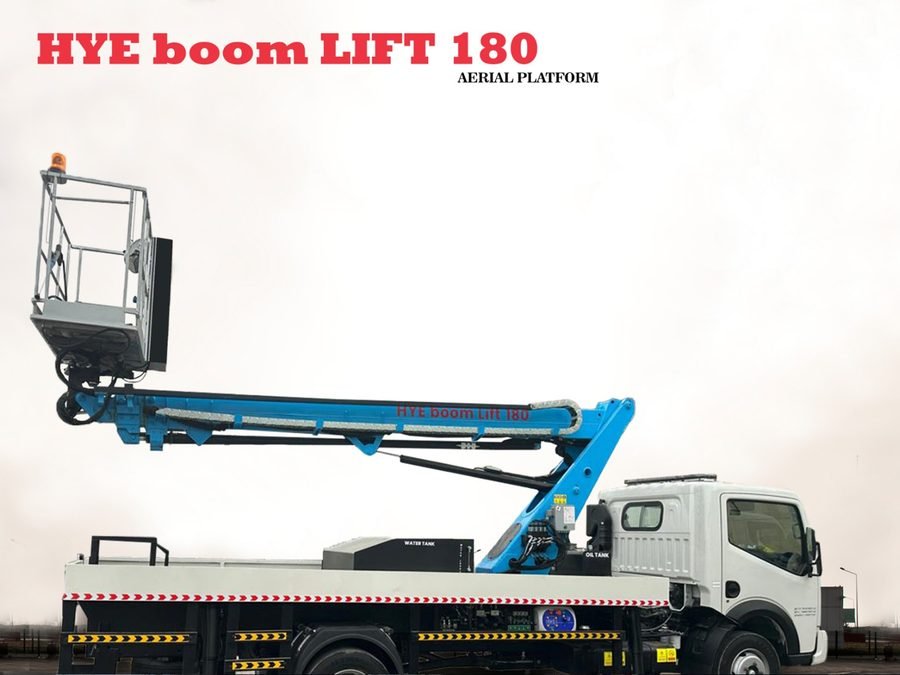

HYE Boom Lift 180
| Working height | 18 m |
|---|---|
| Platform height | 16 m |
| Lateral reach | 7 m |
| Basket dimension | 1200 × 700 × 1100 mm |
| Basket capacity | 200 kg |
- Telescopic boom (3 elements: main boom + two telescopic extensions)
- 360° turret rotation on bearing turntable (non-continuous)
- Fully hydraulic controls in the basket
- Hydraulic controls installed on the turntable
- Outreach controlled by limiter
- Engine start/stop control from the basket
- Available with steel basket / FRP
- 45° right + 45° left hydraulic rotating basket
- Basket levelling by hydraulic circuit
- Emergency manual pump
- 4 nos. hydraulic outriggers (heavy duty)
- Externally installed electrical and hydraulic hoses
- 12V or 24V electric system
- Working light in the basket
- 230V AC electric socket in the basket
20 mWorking height
7.5 mOutreach
200 kgCapacity

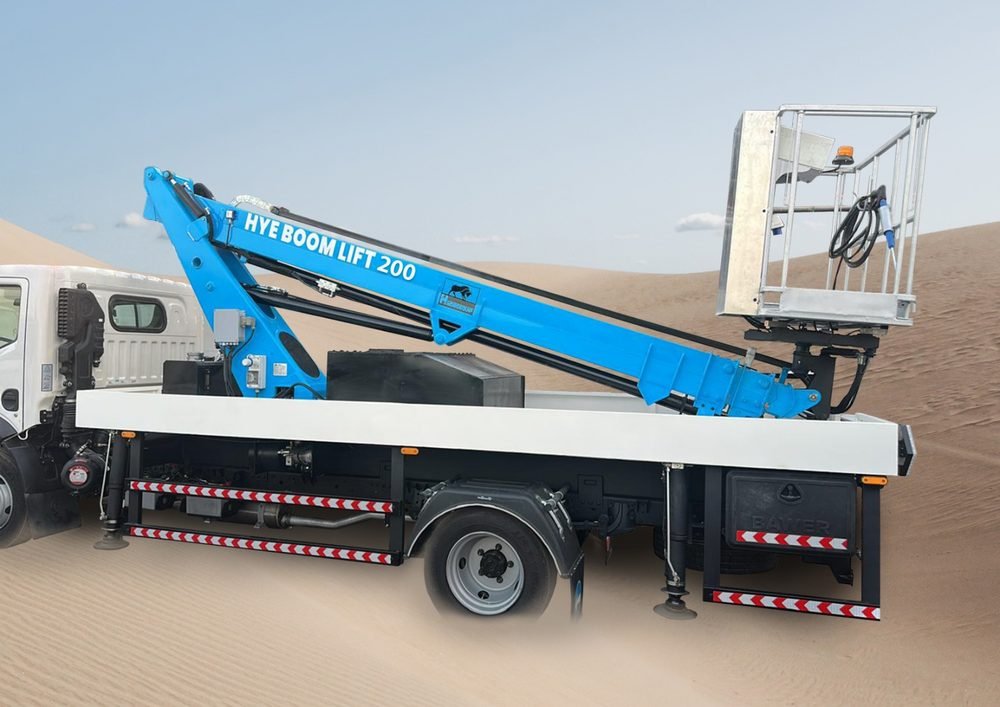

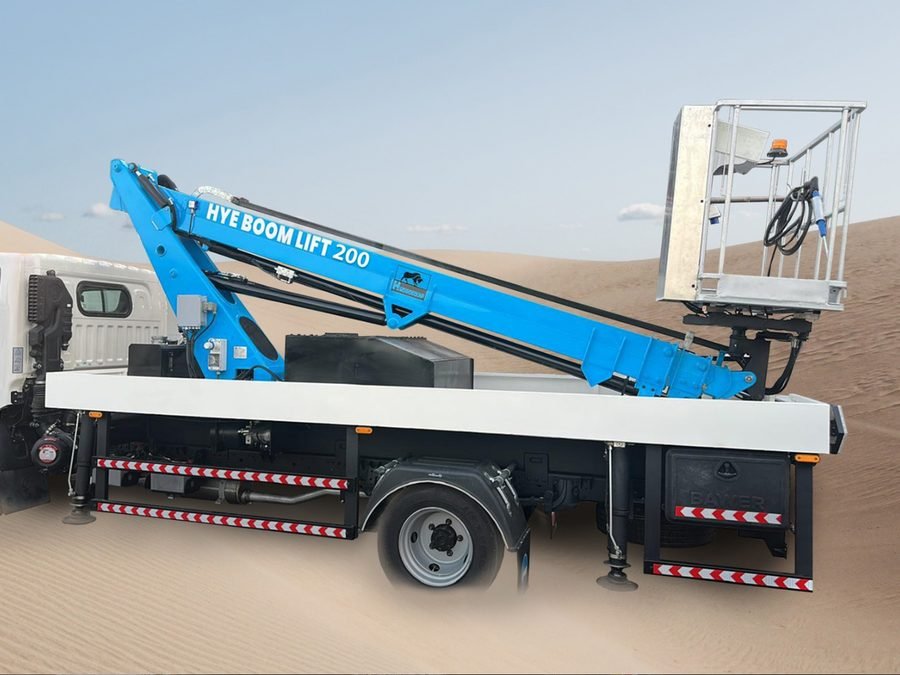

HYE Boom Lift 200
| Working height | 20 m |
|---|---|
| Platform height | 18 m |
| Lateral reach | 7.5 m |
| Basket dimension | 1400 × 700 × 1100 mm |
| Basket capacity | 200 kg |
- Telescopic boom (4 elements: main boom + three telescopic extensions)
- 360° turret rotation on bearing turntable (non-continuous)
- Fully hydraulic controls in the basket
- Hydraulic controls installed on the turntable
- Outreach controlled by limiter
- Engine start/stop control from the basket
- Available with steel basket / FRP
- 45° right + 45° left hydraulic rotating basket
- Basket levelling by hydraulic circuit
- Emergency manual pump
- 4 nos. hydraulic outriggers (heavy duty)
- Externally installed electrical and hydraulic hoses
- 12V or 24V electric system
- Working light in the basket
- 230V AC electric socket in the basket
20 mWorking height
10 mOutreach
250 kgCapacity

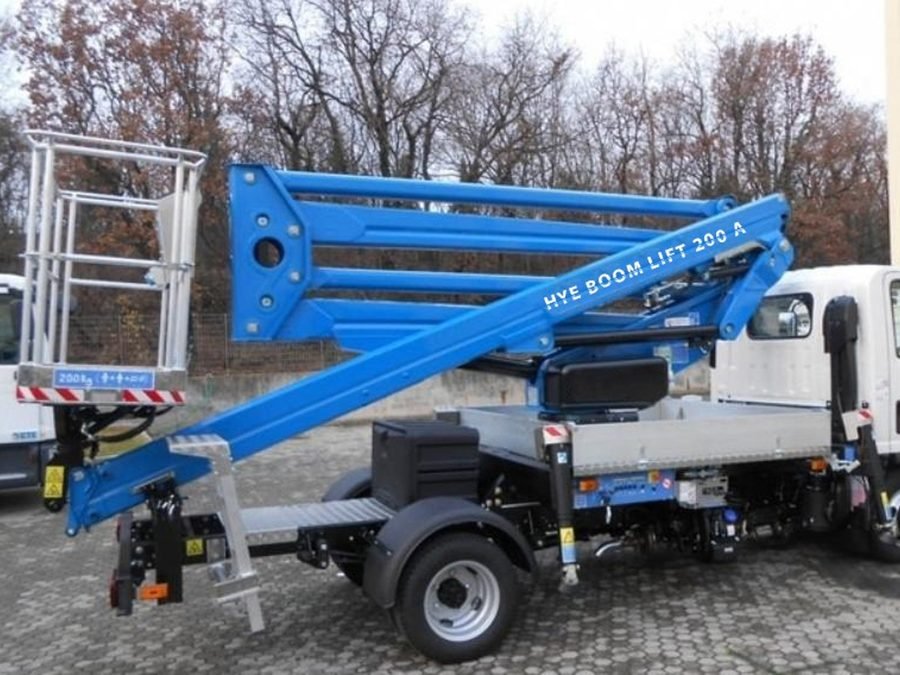

HYE Boom Lift 200 A
| Working height | 20 m |
|---|---|
| Platform height | 18 m |
| Lateral reach | 10 m |
| Basket dimensions | 1400 × 700 × 1100 mm (steel / FRP) |
| Basket capacity | 250 kg |
- Articulated boom (two elements) + telescopic boom (main boom + two extensions)
- 360° turret rotation on bearing turntable (non-continuous)
- Proportional electro-hydraulic controls in the basket
- Electro-hydraulic controls from the ground
- Engine start/stop control from the basket and from the ground
- 60° right + 60° left hydraulic rotating basket
- Basket levelling by hydraulic parallelogram
- Emergency manual pump (electric/manual)
- 12V or 24V electric system available
- 4 nos. hydraulic outriggers (heavy duty)
- Outrigger interlock
25 mWorking height
13 mOutreach
200 kgCapacity

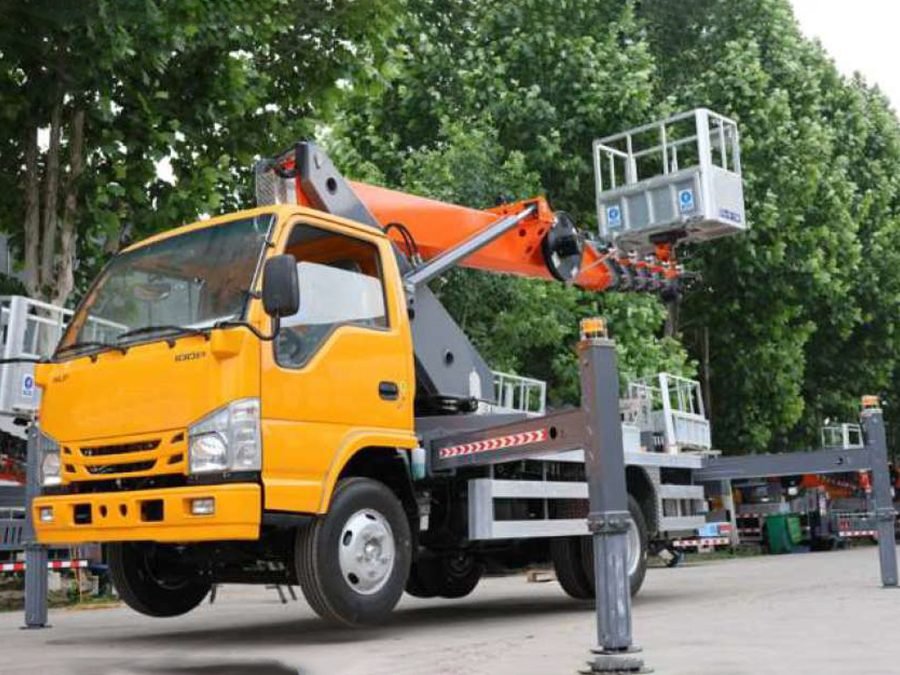

HYE Boom Lift 250
| Working Platform Load Rating | 200 kg |
|---|---|
| Maximum Operating Height | 25 m |
| Maximum Operating Range | 13 m |
| Outrigger Span (Transverse) | 4500 mm |
| Outrigger Span (Longitudinal) | 5000 mm |
| Work Platform Rotation | 360° |
| Truck Capacity | 10 ton |
| Wheel Base | 4500 mm |
| Fence and Walkway | Stainless steel fence and aluminum alloy anti slip walkway |
| Power Take Off System | Pneumatic power take off |
| Working Platform | 1100 × 700 × 1100 mm platform (customizable) |
| Arm Structure | Six section 16 sided synchronous telescopic arm |
| Rotation Device | 360° continuous rotation |
| Outriggers | X type outriggers, individually adjustable and synchronously extendable |
| Operate & Emergency Device | Fixed operation of the turntable; Wireless remote control box operation; Hydraulic handle operation of the vehicle; Equipped with electric emergency pump enabling full hydraulic electric emergency operation of the vehicle |
| Control System | CBR aerial vehicle control system with high stability |
| Leveling System | Hydraulic automatic leveling |
| Chain Extension Force Balance | Balance mechanism for extending the rope to ensure equal force on the left and right leaf chain |
25 mWorking height
12 mOutreach
250 kgCapacity

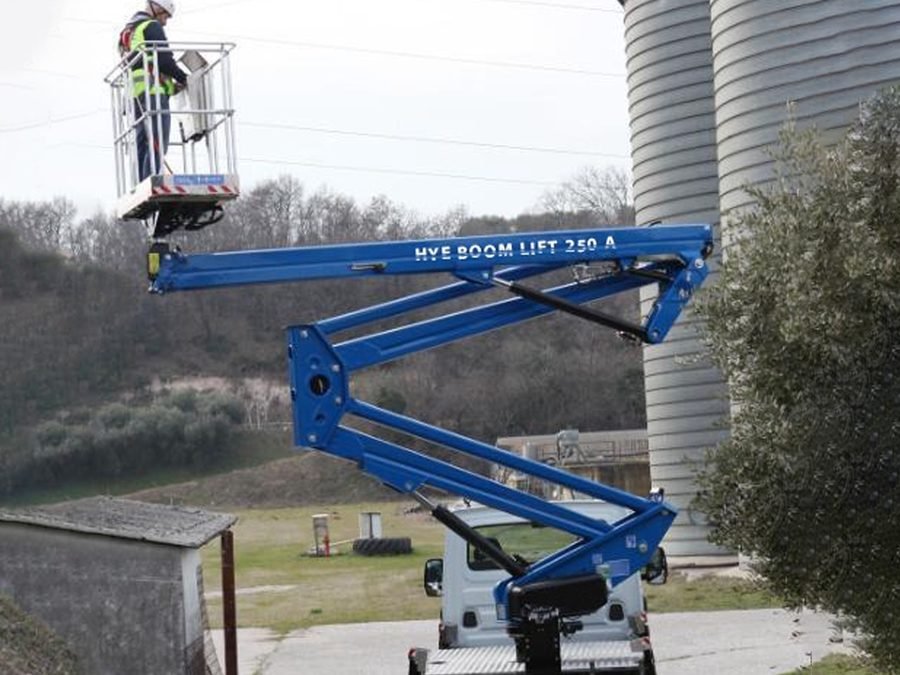

HYE Boom Lift 250 A
| Working height | 25 m |
|---|---|
| Platform height | 23 m |
| Lateral reach | 12 m |
| Basket dimensions | 1400 × 700 × 1100 mm (steel / FRP) |
| Basket capacity | 250 kg |
- Articulated boom (two elements) + telescopic boom (main boom + two extensions)
- 360° turret rotation on bearing turntable (non-continuous)
- Proportional electro-hydraulic controls in the basket
- Electro-hydraulic controls from the ground
- Engine start/stop control from the basket and from the ground
- 60° right + 60° left hydraulic rotating basket
- Basket levelling by hydraulic parallelogram
- Emergency manual pump (electric/manual)
- 12V or 24V electric system available
- 4 nos. hydraulic outriggers (heavy duty)
- Outrigger interlock
Request a Quote
Brochure available on request
29 mWorking height
15 mOutreach
250 kgCapacity
HYE Boom Lift 290 A
| Working height | 29 m |
|---|---|
| Platform height | 27 m |
| Lateral reach | 15 m |
| Basket dimensions | 1400 × 700 × 1100 mm (steel / FRP) |
| Basket capacity | 250 kg |
- Articulated boom (two elements) + telescopic boom (main boom + two extensions)
- 360° turret rotation on bearing turntable (non-continuous)
- Proportional electro-hydraulic controls in the basket
- Electro-hydraulic controls from the ground
- Engine start/stop control from the basket and from the ground
- 60° right + 60° left hydraulic rotating basket
- Basket levelling by hydraulic parallelogram
- Emergency manual pump (electric/manual)
- 12V or 24V electric system available
- 4 nos. hydraulic outriggers (heavy duty)
- Outrigger interlock
32 mWorking height
18 mOutreach
200 kgCapacity

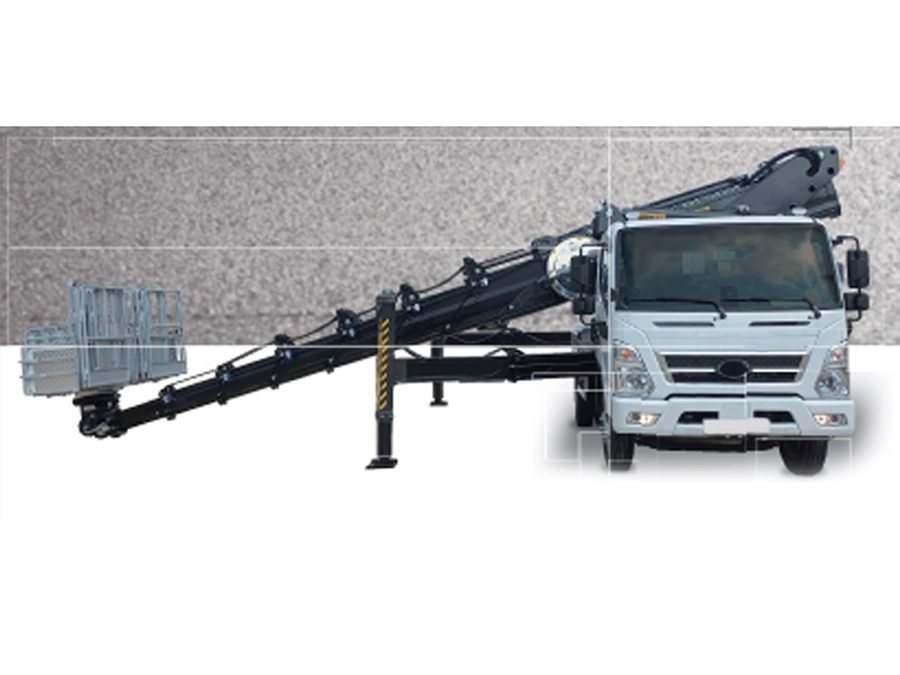

HYE Boom Lift 320
| Working Platform Load Rating | 200 kg |
|---|---|
| Maximum Operating Height | 32 m |
| Maximum Operating Range | 18 m |
| Outrigger Span (Transverse) | 6250 mm |
| Outrigger Span (Longitudinal) | 5300 mm |
| Work Platform Rotation | 360° |
| Truck Capacity | 10 ton |
| Wheel Base | 4500 mm |
| Fence and Walkway | Stainless steel fence and aluminum alloy anti slip walkway |
| Power Take Off System | Pneumatic power take off |
| Working Platform | 1800 × 700 × 1100 mm platform (customizable) |
| Arm Structure | Eight section 16 sided synchronous telescopic arm |
| Rotation Device | 360° continuous rotation |
| Outriggers | X type outriggers, individually adjustable and synchronously extendable |
| Operate & Emergency Device | Fixed operation of the turntable; Wireless remote control box operation; Hydraulic handle operation of the vehicle; Equipped with electric emergency pump enabling full hydraulic electric emergency operation of the vehicle |
| Control System | CBR aerial vehicle control system with high stability |
| Leveling System | Hydraulic automatic leveling system |
46 mWorking height
26 mOutreach
400 kgCapacity

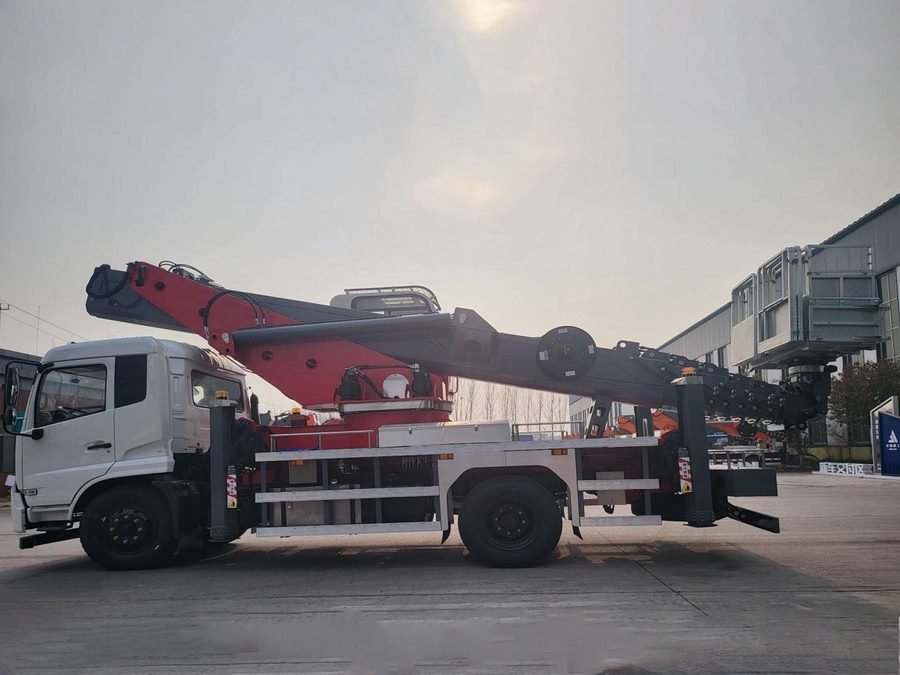

HYE Boom Lift 460
| Working Platform Load Rating | 400 kg |
|---|---|
| Maximum Operating Height | 46 m |
| Maximum Operating Range | 26 m |
| Outrigger Span (Transverse) | 7890 mm |
| Outrigger Span (Longitudinal) | 6730 mm |
| Work Platform Rotation | 360° |
| Truck Capacity | 18 ton |
| Wheel Base | 4500 mm |
| Fence and Walkway | Stainless steel fence and aluminum alloy anti slip walkway |
| Power Take Off System | Pneumatic power take off |
| Working Platform | 3200 × 730 × 1050 mm platform (customizable) |
| Arm Structure | Seven section 16 sided synchronous telescopic arm |
| Rotation Device | 360° continuous rotation |
| Outriggers | X type 3 outriggers, individually adjustable and synchronously extendable |
| Operate & Emergency Device | Fixed operation of the turntable; Wireless remote control box operation; Hydraulic handle operation of the vehicle; Equipped with electric emergency pump enabling full hydraulic electric emergency operation of the vehicle |
| Control System | CBR aerial vehicle control system with high stability |
| Leveling System | Hydraulic automatic leveling |
| Chain Extension Force Balance | Balance mechanism for extending the rope to ensure equal force on the left and right leaf chain |
Applications
Where the HYE Boom Lift Aerial Platforms are put to work.
Utility & Power Sector
Safe and efficient access for electrical and telecom infrastructure.
Municipal & Infrastructure Work
Essential for road lighting, bridges and public services.
Construction & Industrial Use
Ideal for high-rise maintenance, inspections and installations.
Emergency & Rescue Operations
Quick-response aerial access for firefighting and disaster management.
More HYE-LIFT Products
TWISK Double Skip Loaders
Handles two skips at once with a moving platform to boost productivity in waste management and materials handling.
More Details
Swift Single Skip Loaders
Lifts and transports single skip bins, ideal for urban waste collection and construction sites.
More Details
Equinox Hook Loaders
Durable, precise and efficient hook loader that sets a new standard in materials handling and transport.
More Details
