HYE BOOM LIFT
Hye Boom Lift Truck-Mounted Aerial Platforms are designed for maximum reach, stability, and efficiency, making them the ideal choice for industries that require safe and reliable aerial access. Whether for infrastructure maintenance, utility work, or emergency services, Hye boom lifts deliver superior performance across diverse job sites.
- Enhanced Mobility
- High Reach & Stability
- Durable & Weather-Resistant
- Customization Options
- Advanced Hydraulic Control
HYE BOOM LIFT 100
Working height: 10 m
Platform height: 8 m
Telescopic boom (2 elements: main boom + one telescopic extension)
360° turret rotation on bearing turntable (non-continuous)
Fully hydraulic controls in the basket
Hydraulic controls installed on the turntable
Outreach controlled by limiter
Engine start/stop control from the basket
Available with steel basket / FRP
45° right + 45° left hydraulic rotating basket
Basket levelling by hydraulic circuit
Emergency manual pump
4 nos. hydraulic outriggers (heavy duty)
Basket dimension: 1200 × 700 × 1100 mm
Externally installed electrical and hydraulic hoses
12V or 24V electric system
Working light in the basket
230V AC electric socket in the basket
Basket capacity: 200 kg
- HOUR METER
- HMI DISPLAY
- OIL COOLER
- CENTRALISED LUBRICATION
HYE BOOM LIFT 130
Working height: 13 m
Platform height: 11 m
Lateral reach: 5.5 m
Telescopic boom (3 elements: main boom + two telescopic extensions)
360° turret rotation on bearing turntable (non-continuous)
Fully hydraulic controls in the basket
Hydraulic controls installed on the turntable
Outreach controlled by limiter
Engine start/stop control from the basket
Available with steel basket / FRP
45° right + 45° left hydraulic rotating basket
Basket levelling by hydraulic circuit
Emergency manual pump
4 nos. hydraulic outriggers (heavy duty)
Basket dimension: 1200 × 700 × 1100 mm
Externally installed electrical and hydraulic hoses
12V or 24V electric system
Working light in the basket
230V AC electric socket in the basket
Basket capacity: 200 kg
- HOUR METER
- HMI DISPLAY
- OIL COOLER
- CENTRALISED LUBRICATION
HYE BOOM LIFT 130 A
Working height: 13 m
Platform height: 11 m
Lateral reach: 5 m
Articulated boom (two elements) + telescopic boom (main boom + two extensions)
360° turret rotation on bearing turntable (non-continuous)
Electro-hydraulic controls in the basket
Electro-hydraulic controls from the ground
Engine start/stop control from the basket and from the ground
60° right + 60° left hydraulic rotating basket
Basket levelling by hydraulic parallelogram
Emergency manual pump (electric/manual)
12V or 24V electric system available
4 nos. hydraulic outriggers (heavy duty)
Basket dimensions: 1400 × 700 × 1100 mm (steel / FRP)
Outrigger interlock
Basket capacity: 200 kg
- HOUR METER
- HMI DISPLAY
- OIL COOLER
- CENTRALISED LUBRICATION
HYE BOOM LIFT 160
Working height: 16 m
Platform height: 14 m
Lateral reach: 6.5 m
Telescopic boom (3 elements: main boom + two telescopic extensions)
360° turret rotation on bearing turntable (non-continuous)
Fully hydraulic controls in the basket
Hydraulic controls installed on the turntable
Outreach controlled by limiter
Engine start/stop control from the basket
Available with steel basket / FRP
45° right + 45° left hydraulic rotating basket
Basket levelling by hydraulic circuit
Emergency manual pump
4 nos. hydraulic outriggers (heavy duty)
Basket dimension: 1200 × 700 × 1100 mm
Externally installed electrical and hydraulic hoses
12V or 24V electric system
Working light in the basket
230V AC electric socket in the basket
Basket capacity: 200 kg
- HOUR METER
- HMI DISPLAY
- OIL COOLER
- CENTRALISED LUBRICATION
HYE BOOM LIFT 180
Working height: 18 m
Platform height: 16 m
Lateral reach: 7 m
Telescopic boom (3 elements: main boom + two telescopic extensions)
360° turret rotation on bearing turntable (non-continuous)
Fully hydraulic controls in the basket
Hydraulic controls installed on the turntable
Outreach controlled by limiter
Engine start/stop control from the basket
Available with steel basket / FRP
45° right + 45° left hydraulic rotating basket
Basket levelling by hydraulic circuit
Emergency manual pump
4 nos. hydraulic outriggers (heavy duty)
Basket dimension: 1200 × 700 × 1100 mm
Externally installed electrical and hydraulic hoses
12V or 24V electric system
Working light in the basket
230V AC electric socket in the basket
Basket capacity: 200 kg
- HOUR METER
- HMI DISPLAY
- OIL COOLER
- CENTRALISED LUBRICATION
HYE BOOM LIFT 200
Working height: 20 m
Platform height: 18 m
Lateral reach: 7.5 m
Telescopic boom (4 elements: main boom + three telescopic extensions)
360° turret rotation on bearing turntable (non-continuous)
Fully hydraulic controls in the basket
Hydraulic controls installed on the turntable
Outreach controlled by limiter
Engine start/stop control from the basket
Available with steel basket / FRP
45° right + 45° left hydraulic rotating basket
Basket levelling by hydraulic circuit
Emergency manual pump
4 nos. hydraulic outriggers (heavy duty)
Basket dimension: 1400 × 700 × 1100 mm
Externally installed electrical and hydraulic hoses
12V or 24V electric system
Working light in the basket
230V AC electric socket in the basket
Basket capacity: 200 kg
- HOUR METER
- HMI DISPLAY
- OIL COOLER
- CENTRALISED LUBRICATION

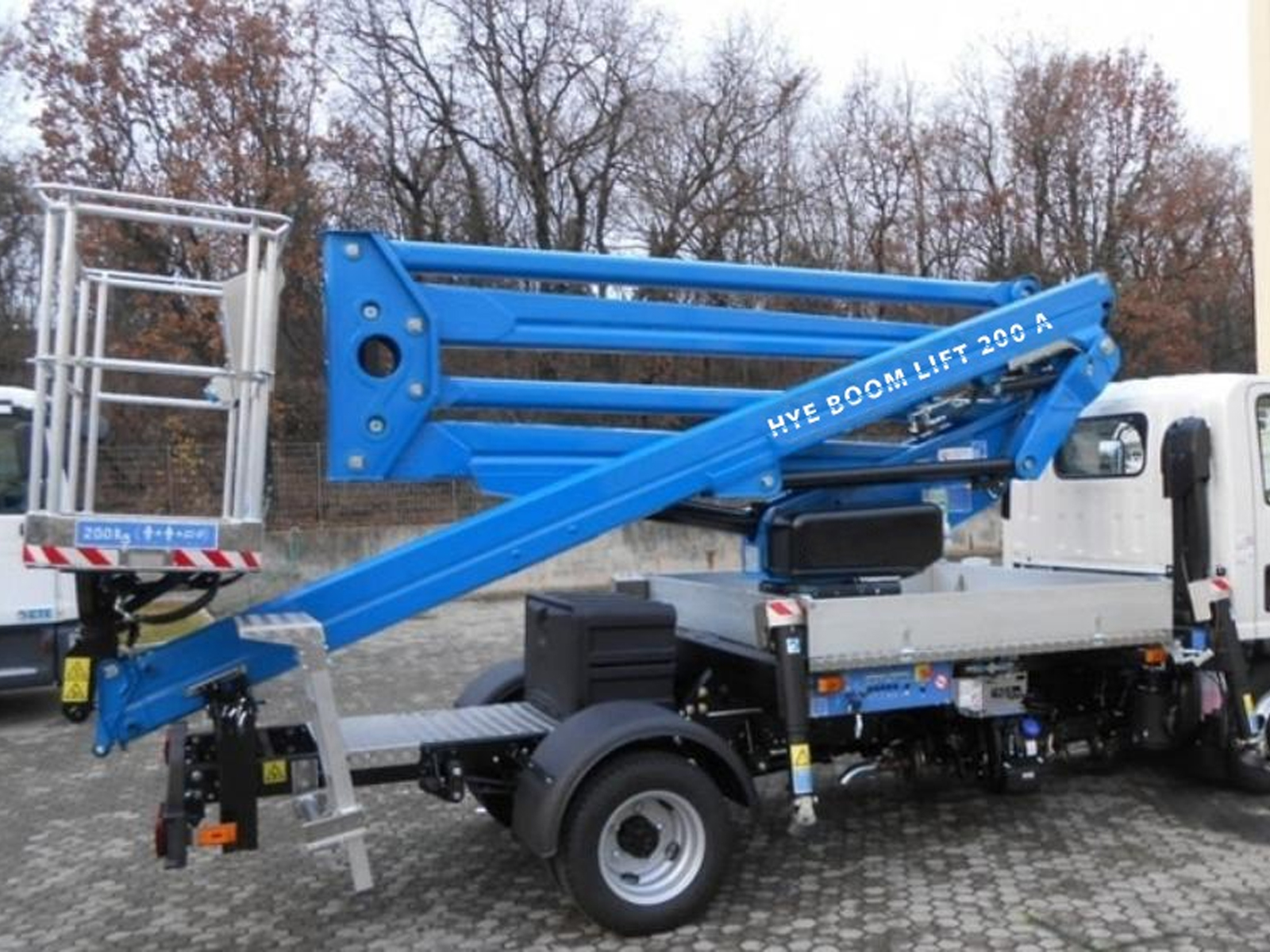

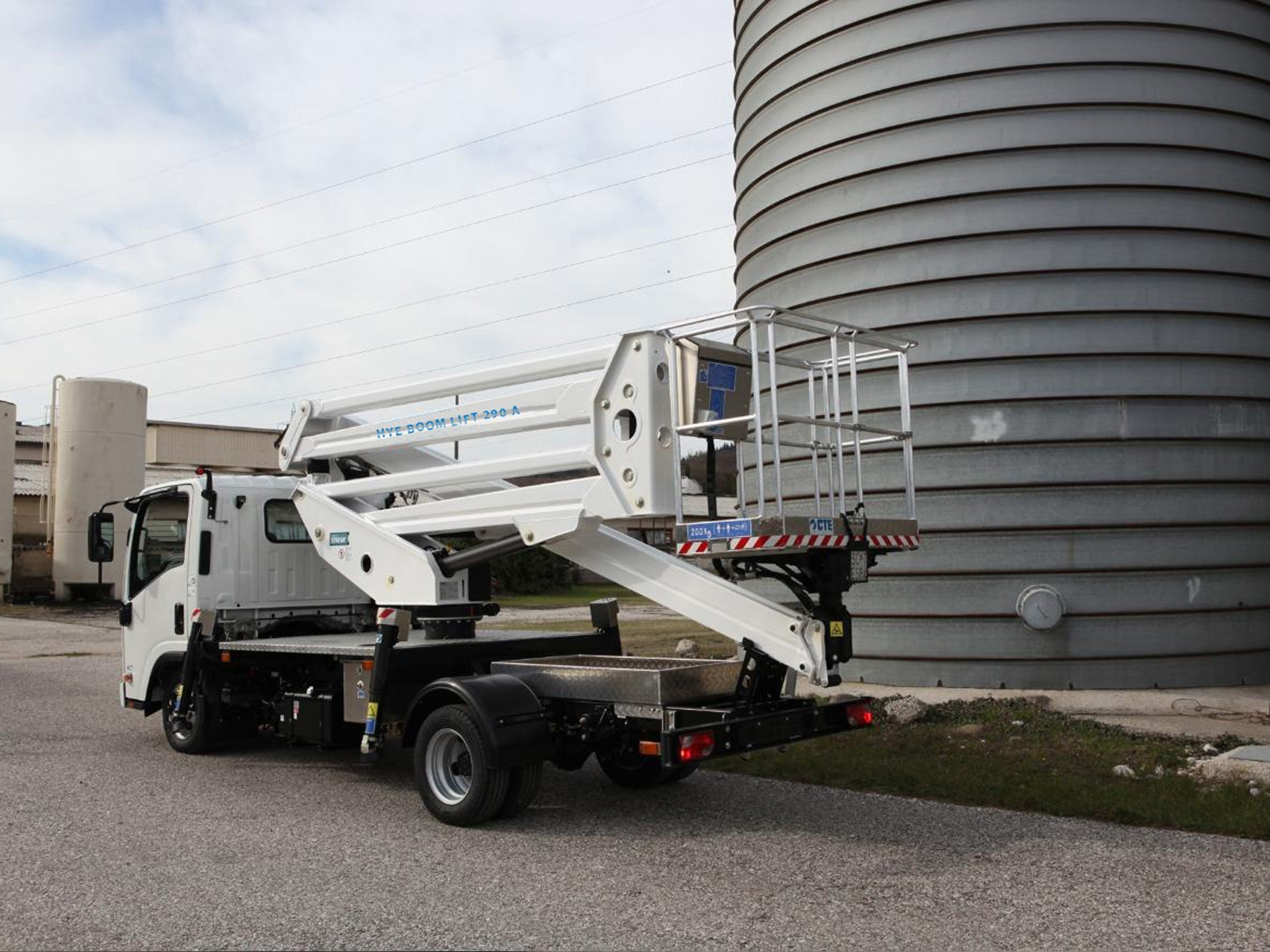

HYE BOOM LIFT 200 A
Working height: 20 m
Platform height: 18 m
Lateral reach: 10 m
Articulated boom (two elements) + telescopic boom (main boom + two extensions)
360° turret rotation on bearing turntable (non-continuous)
Proportional electro-hydraulic controls in the basket
Electro-hydraulic controls from the ground
Engine start/stop control from the basket and from the ground
60° right + 60° left hydraulic rotating basket
Basket levelling by hydraulic parallelogram
Emergency manual pump (electric/manual)
12V or 24V electric system available
4 nos. hydraulic outriggers (heavy duty)
Basket dimensions: 1400 × 700 × 1100 mm (steel / FRP)
Outrigger interlock
Basket capacity: 250 kg
- HOUR METER
- HMI DISPLAY
- OIL COOLER
- CENTRALISED LUBRICATION
HYE BOOM LIFT 250
Working Platform Load Rating: 200 kg
Maximum Operating Height: 25 m
Maximum Operating Range: 13 m
Outrigger Span (Transverse): 4500 mm
Outrigger Span (Longitudinal): 5000 mm
Work Platform Rotation: 360°
Truck Capacity: 10 ton
Wheel Base: 4500 mm
Fence and Walkway:
Stainless steel fence and aluminum alloy anti slip walkway
Power Take Off System:
Pneumatic power take off
Working Platform:
1100 × 700 × 1100 mm platform (customizable)
Arm Structure:
Six section 16 sided synchronous telescopic arm
Rotation Device:
360° continuous rotation
Outriggers:
X type outriggers, individually adjustable and synchronously extendable
Operate & Emergency Device:
Fixed operation of the turntable
Wireless remote control box operation
Hydraulic handle operation of the vehicle
Equipped with electric emergency pump enabling full hydraulic electric emergency operation of the vehicle
Control System:
CBR aerial vehicle control system with high stability
Leveling System:
Hydraulic automatic leveling
Chain Extension Force Balance:
Balance mechanism for extending the rope to ensure equal force on the left and right leaf chain
- HOUR METER
- HMI DISPLAY
- OIL COOLER
- CENTRALISED LUBRICATION
HYE BOOM LIFT 250 A
Working height: 25 m
Platform height: 23 m
Lateral reach: 12 m
Articulated boom (two elements) + telescopic boom (main boom + two extensions)
360° turret rotation on bearing turntable (non-continuous)
Proportional electro-hydraulic controls in the basket
Electro-hydraulic controls from the ground
Engine start/stop control from the basket and from the ground
60° right + 60° left hydraulic rotating basket
Basket levelling by hydraulic parallelogram
Emergency manual pump (electric/manual)
12V or 24V electric system available
4 nos. hydraulic outriggers (heavy duty)
Basket dimensions: 1400 × 700 × 1100 mm (steel / FRP)
Outrigger interlock
Basket capacity: 250 kg
- HOUR METER
- HMI DISPLAY
- OIL COOLER
- CENTRALISED LUBRICATION
HYE BOOM LIFT 290 A
Working height: 29 m
Platform height: 27 m
Lateral reach: 15 m
Articulated boom (two elements) + telescopic boom (main boom + two extensions)
360° turret rotation on bearing turntable (non-continuous)
Proportional electro-hydraulic controls in the basket
Electro-hydraulic controls from the ground
Engine start/stop control from the basket and from the ground
60° right + 60° left hydraulic rotating basket
Basket levelling by hydraulic parallelogram
Emergency manual pump (electric/manual)
12V or 24V electric system available
4 nos. hydraulic outriggers (heavy duty)
Basket dimensions: 1400 × 700 × 1100 mm (steel / FRP)
Outrigger interlock
Basket capacity: 250 kg
- HOUR METER
- HMI DISPLAY
- OIL COOLER
- CENTRALISED LUBRICATION
HYE BOOM LIFT 320
Working Platform Load Rating: 200 kg
Maximum Operating Height: 32 m
Maximum Operating Range: 18 m
Outrigger Span (Transverse): 6250 mm
Outrigger Span (Longitudinal): 5300 mm
Work Platform Rotation: 360°
Truck Capacity: 10 ton
Wheel Base: 4500 mm
Fence and Walkway:
Stainless steel fence and aluminum alloy anti slip walkway
Power Take Off System:
Pneumatic power take off
Working Platform:
1800 × 700 × 1100 mm platform (customizable)
Arm Structure:
Eight section 16 sided synchronous telescopic arm
Rotation Device:
360° continuous rotation
Outriggers:
X type outriggers, individually adjustable and synchronously extendable
Operate & Emergency Device:
Fixed operation of the turntable
Wireless remote control box operation
Hydraulic handle operation of the vehicle
Equipped with electric emergency pump enabling full hydraulic electric emergency operation of the vehicle
Control System:
CBR aerial vehicle control system with high stability
Leveling System:
Hydraulic automatic leveling system
- HOUR METER
- HMI DISPLAY
- OIL COOLER
- CENTRALISED LUBRICATION
HYE BOOM LIFT 460
Working Platform Load Rating: 400 kg
Maximum Operating Height: 46 m
Maximum Operating Range: 26 m
Outrigger Span (Transverse): 7890 mm
Outrigger Span (Longitudinal): 6730 mm
Work Platform Rotation: 360°
Truck Capacity: 18 ton
Wheel Base: 4500 mm
Fence and Walkway:
Stainless steel fence and aluminum alloy anti slip walkway
Power Take Off System:
Pneumatic power take off
Working Platform:
3200 × 730 × 1050 mm platform (customizable)
Arm Structure:
Seven section 16 sided synchronous telescopic arm
Rotation Device:
360° continuous rotation
Outriggers:
X type 3 outriggers, individually adjustable and synchronously extendable
Operate & Emergency Device:
Fixed operation of the turntable
Wireless remote control box operation
Hydraulic handle operation of the vehicle
Equipped with electric emergency pump enabling full hydraulic electric emergency operation of the vehicle
Control System:
CBR aerial vehicle control system with high stability
Leveling System:
Hydraulic automatic leveling
Chain Extension Force Balance:
Balance mechanism for extending the rope to ensure equal force on the left and right leaf chain
- HOUR METER
- HMI DISPLAY
- OIL COOLER
- CENTRALISED LUBRICATION
Application
Utility & Power Sector
Safe and efficient access for electrical and telecom infrastructure.
Municipal & Infrastructure Work
Essential for road lighting, bridges, and public services.
Recycling
Handling recyclable materials.
Construction & Industrial Use
Ideal for high-rise maintenance, inspections, and installations.
Emergency & Rescue Operations
Quick-response aerial access for firefighting and disaster management.
Reach Higher, Work Smarter
Built for performance and safety, Hye Boom Lift Truck-Mounted Aerial Platforms provide a seamless lifting experience for professionals who demand efficiency and reliability.
